Practising Gloss Finish + Compound & Polish

I was testing some colour scheme, so might as well do this simple tutorials

First, you'll need some plastic spoon, you can test on any model kits, but its up to you.

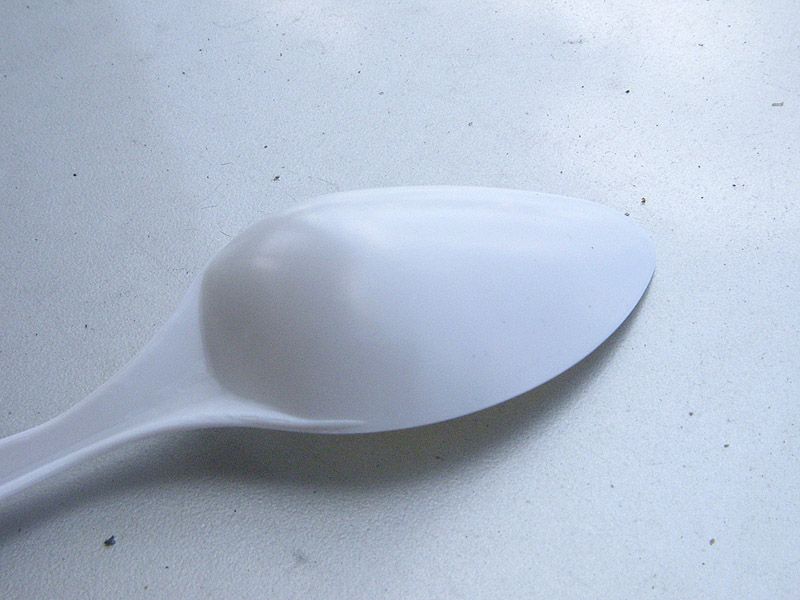

Plastic spoon wet sand with 1000

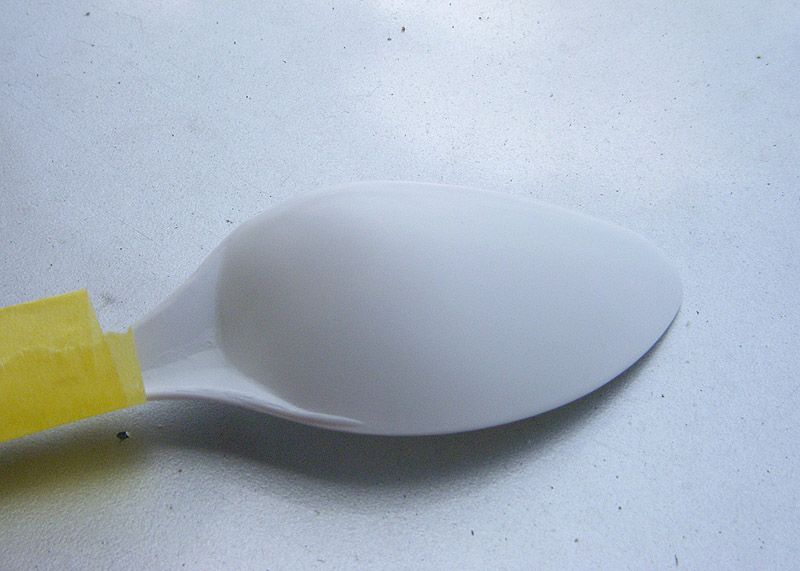

Prime with surfacer, here I've prime with 1200 Surfacer + White Base 1000 at 1:3 ratio, because i need to paint BRIGHT colour, dark colours and metalic colours are not neccessary to be white base. After it dries, lightly wetsand with 1500, then its ready to paint.

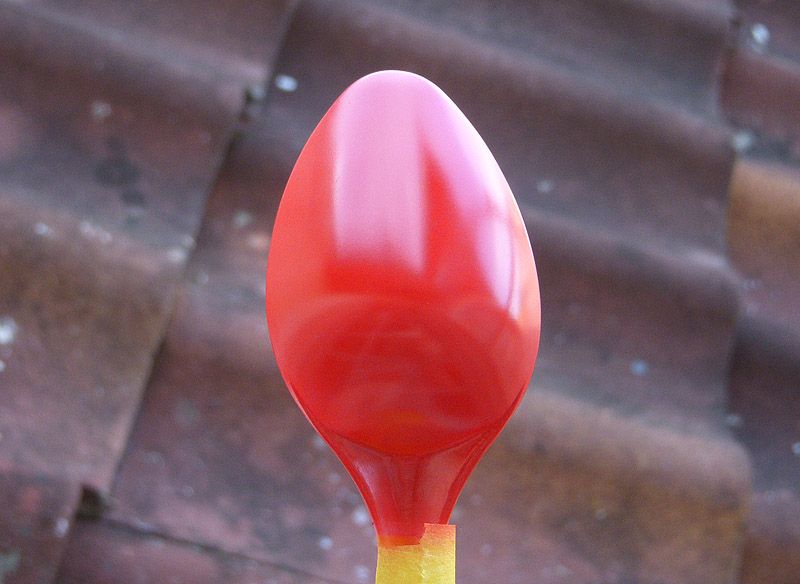

Here is after 2 mist coat, if the coverage is still not even, 3 mist coat is needed, spray at 15psi, paint to thinner ratio is 1:3, around 10-15 min in between, as you can see, paint is not gloss when applying mist coat, this is normal, apply coat as coat as light as possible.

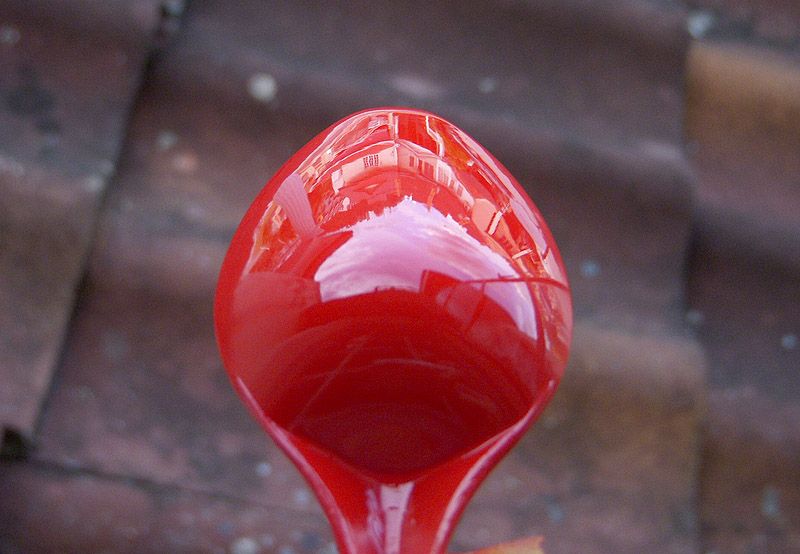

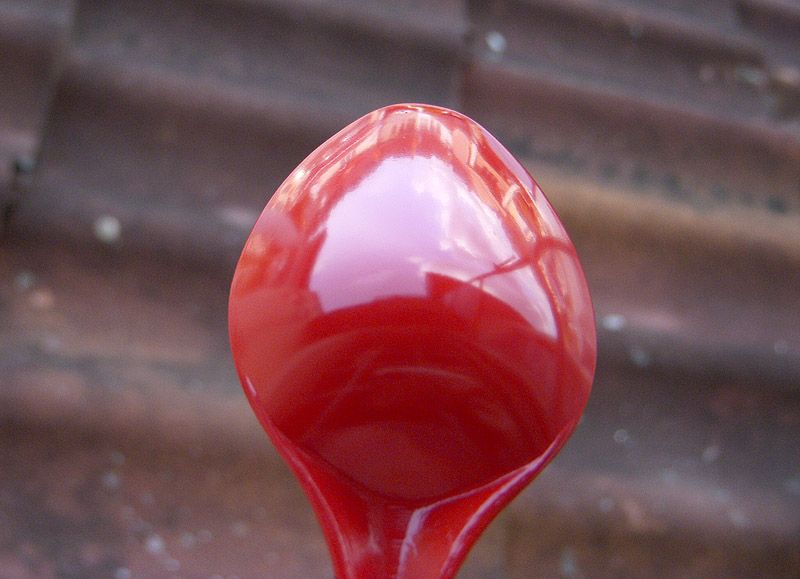

Then the WET COAT, i use 20psi this time with 1:3 paint to thinner ratio, start spraying until the whole surface looks WET, after wet coat, keep it in close place to avoid any dust sticking to the surface, after 40 min, apply another WET COAT.


After the paint dries, it will become slightly texture and less glossy, this is normal, if you spot any dust sticking on the surface, lightly wetsand with 1000, but make sure paint is dried.

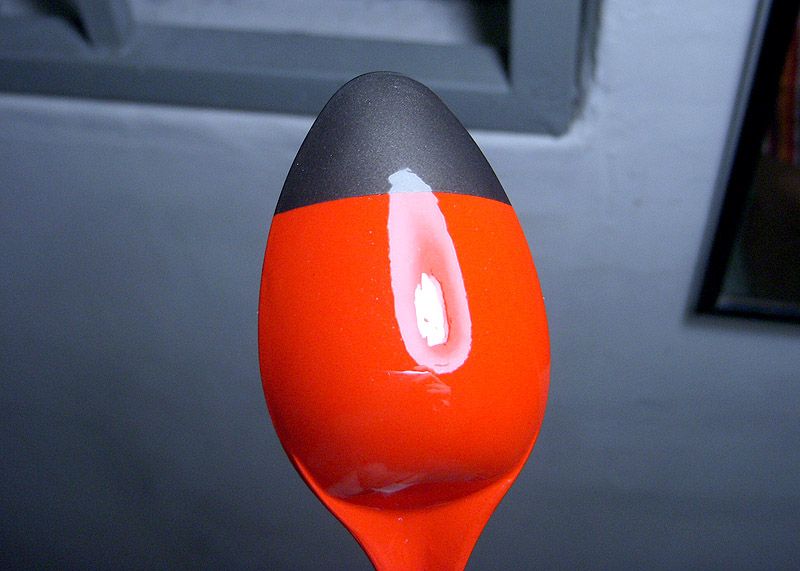

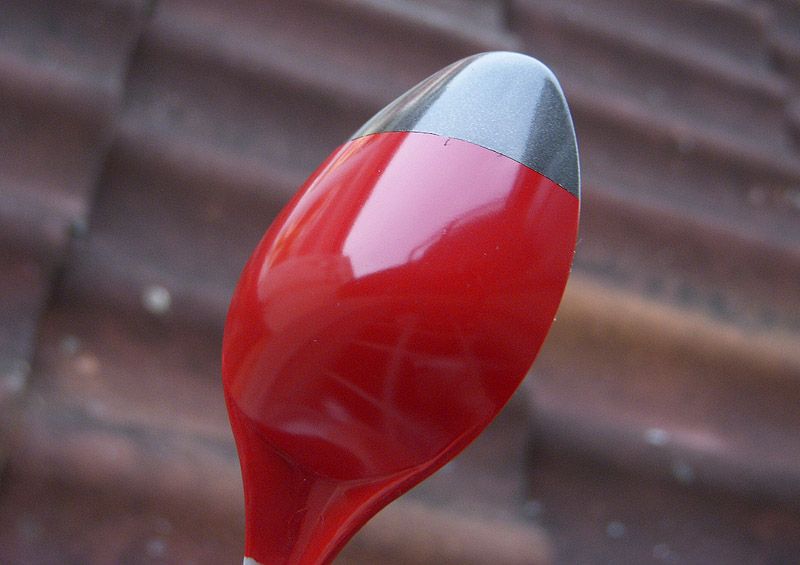

After paint dries, i mask and spray the GUN METAL, 1 mist coat and 1 WET COAT.


After 1 hour, i apply CLEAR GLOSS coat, 1 mist coat follow by 2 WETCOAT 30min apart.



After 1 night, the paint dries, and it will become slighty texture.

3 days after the last coat of paint, I wetsand with 1500, 1200 if surface texture is rough.


You need to eliminate any textures, sticked dust or orange peel during wetsanding. Compound & polish are mean for removing scratches, of course you can use coarser compound like Autosol and others, but wetsand is much faster.

I'm using Tamiya's Compund, Coarse, Fine, Finish and Tamiya Wax.


Some explanations on the Tamiya's compound & wax,
Coarse Compound: Remove Scratches left by wetsanding.
Fine Compound: Remove Fine Scratches left by Coarse Compound.
Finish Compound: Remove VERY Fine Scratches left by Fine Compound.
Wax: Not necessary, but it do add some shines and also protect your kit.

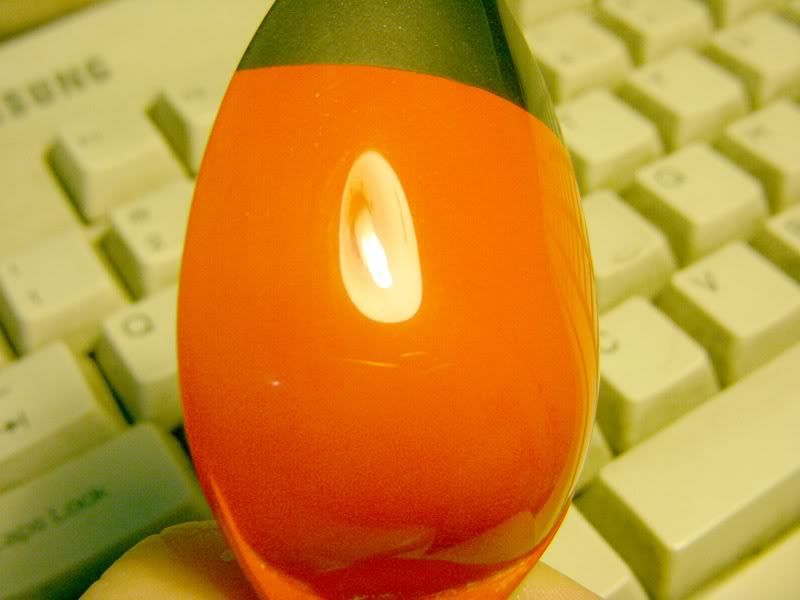

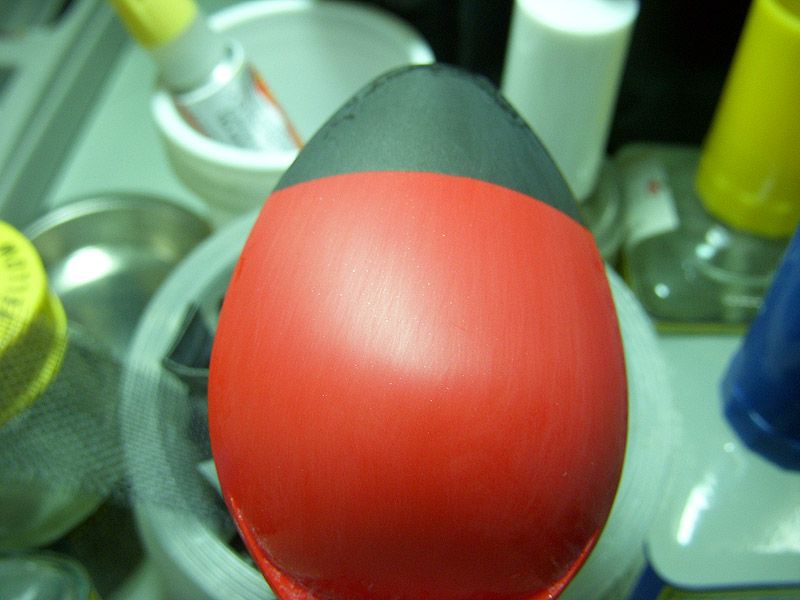

Here is after Tamiya Coarse Compound


I can't capture those scratches clearly, so its pointless to show every steps.

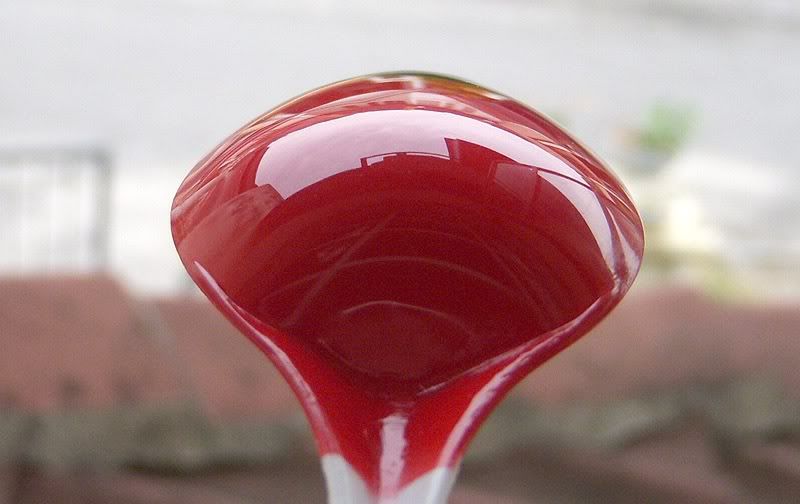

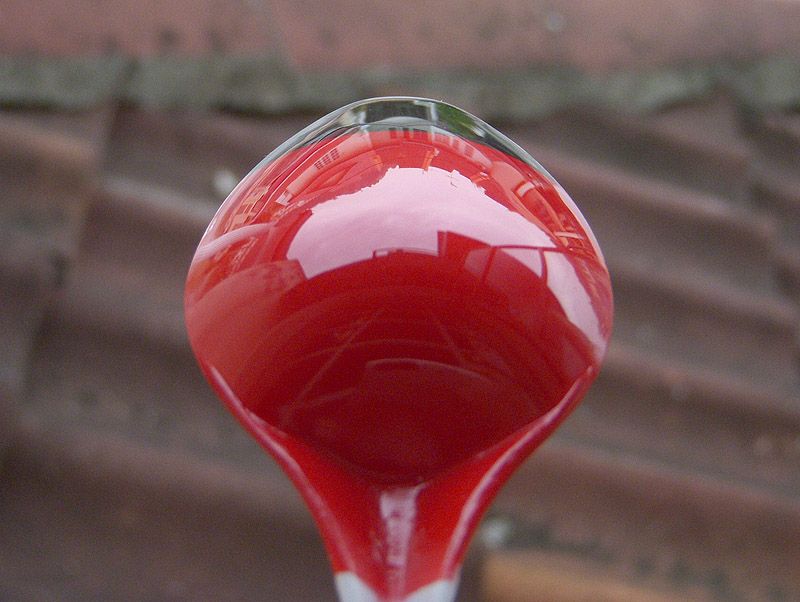

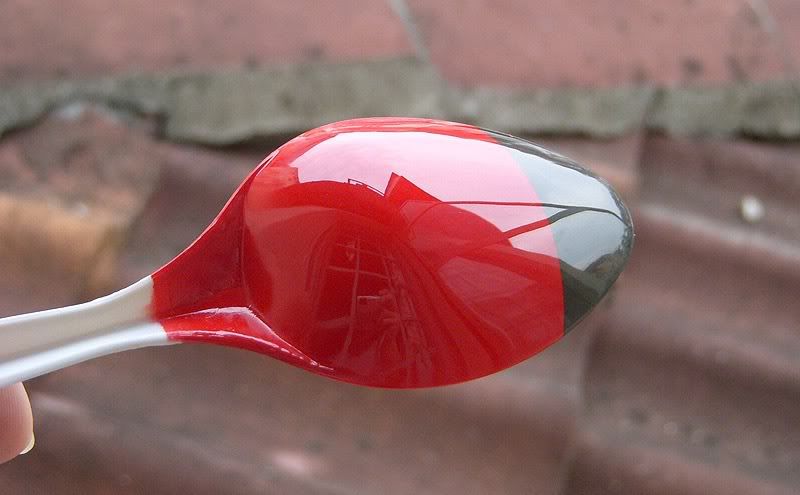

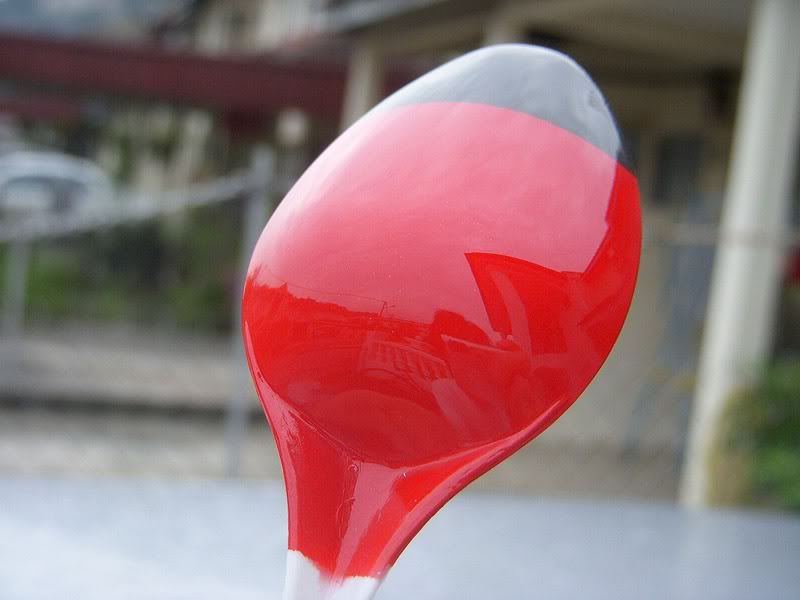

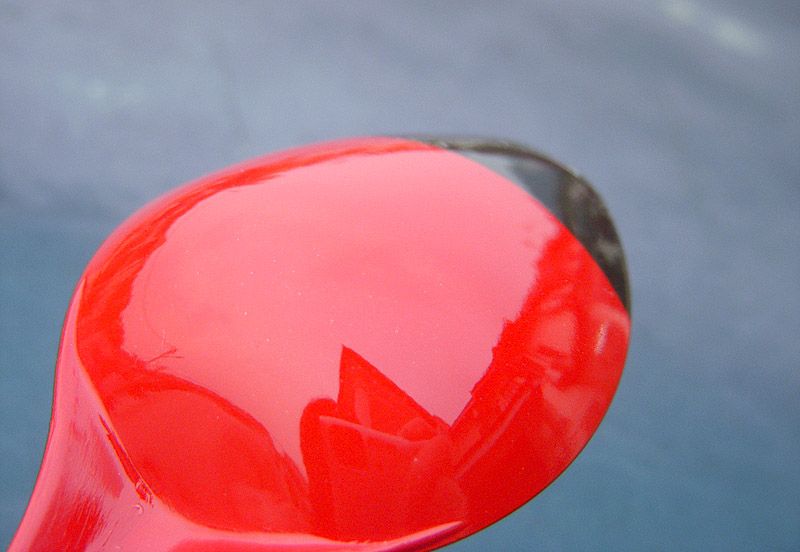

Here's the FINAL result after Tamiya's Wax.








You can download the tutorials in PDF format...
PDF TUTORIAL (right click to save)
Thanks KUMAN for the PDF conversion

ADDED NOTE: You need to wait for the paint to gas out before you add another layer of paint to avoid paint crack after few years, as for practising for gloss coat on spoon, u can follow my way, for doing on your kits, it better to do the WET coat 1 day after MIST coat, and the CLEAR GLOSS coat a day after wet coat.

wahlawei good tutorial.

Just a question brother entau, I read previously in druid's thread that If we finish all the layered paintings in 1 day or in rapid, the paints will tend to crack after 3 years or so (can't remember) because we have to wait for the paint's gas to gas out before can apply a second layer coating. Did you have this experience before?

I usually paint 1 day for 1 layer so if the total is 5 layers which includes clear spray then it would take me 5 days to finish the whole process while waiting each day for the paint to gas out. Takut ma....

Anyway good tutorial. I learnt something new today

Thanks for reminding me, i think that should be the correct way

but none of my kit is older than 2 years, so i'm a bit worried

thanks for sharring sifu

Great tutorial... thanks

Great tutorial thanks for sharing

wah aih... very clear... THANK YOU VERY MUCH...

TUTORIAL DONE, compound & polish pictures added.

holy crap.... got to save this down man.

btw,
can car wax/polish be used?

yes, some modeller did use industrial car wax, but i haven't really tried it out

Here's the discussion about polishing

the only problem is you need to know which to use first and last, for Tamiya's compound it is easy, start with Coarse, Fine then Finish Compound.

Entau san...

excellent...

can i make a pdf out of your tutorial and made it available for download (with credit to you of course)... can? can?

kuman

no problem

wahhhhh from now on we need to call cikgu entau or cikgu disiplin entau wahahaha holding rotan in 1 hand for naughty boys lol

Abg kuman, I think good idealah for putting in good tutorials as PDF format so that people can download. Siapa cakap malaysia cannot right? Malaysia boleh maaa . I saw also other tutorials that are good here why not put also?

Which website abg kuman?

@Entau:

thanks and here is the files..
and maybe you can put the link in the first post as well..

=====================================================

Tutorials in PDF format..

Practising Gloss Finish PDF -> Right click - Save

=====================================================

Sky:.. right click above for the file..

kuman

added in the 1st post

Sky, cikgu displin?? nak kena rotan?
